Clark CGC 60/70

Features

• Service Access is Simple

• Allows for easy addition of extra functions and simplifies service

• Access to the engine compartment in less than 30 seconds

• Smooth engagement, cushioned shifting

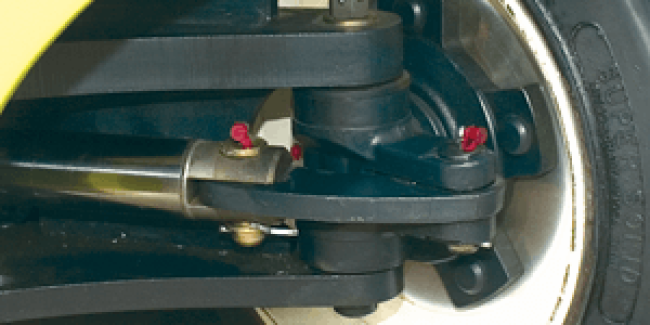

• Steering Axle

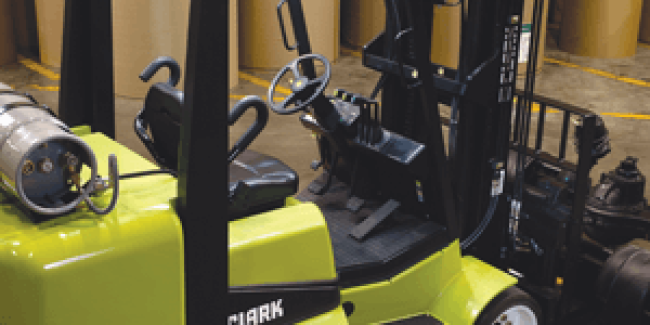

• Operator Compartment

• Uses load-sensing flow control valve to reduce heat build-up

• Carriage has 6 rollers to maximize load distribution and reduce free play

• Modulated Shift Protection

• Tilt Cylinders Anchored to Frame

• Engine

• Built for smooth, quiet operation

• Common Sump for Axle and Transmission

• Integral Axle & Transmission

• Applied with a hydraulic servo-type power brake valve

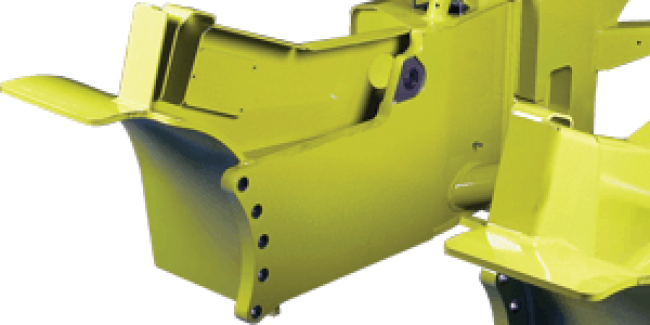

• Frame

• Provides additional steering force

• Nested I-channel allows space for cylinders, hoses and chains

• Silent staging reduces shock and vibration

• Hydraulic Cushioning Valve

• Controlled lowering independent of engine speed

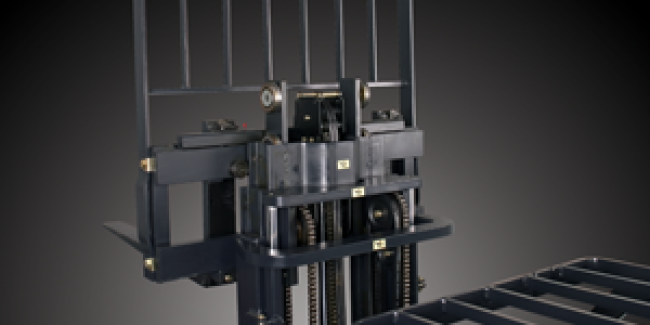

• Upright & Carriage

• Seat deck raises for easy access to both sides of engine and floorboard is removable to reveal hydraulic & transmission components

• To withstand impact without loosening or breaking

• Main hydraulic valve incorporates adjustable flow controls for tilt and auxiliary functions

• Transmission disengages when parking brake is set preventing driving against brakes

• Reduces vibration and noise level to improve operator comfort

• Adjust to suit operator and provides easier entry/exit

• Molded for support with non-cinching, retractable seat belt

• Allows for precisely controlled travel speeds during high speed lifting

• Maximum Visibility

• Shimmable, Sealed & Canted Rollers

• Protects your investment in the event of excessive engine coolant, high transmission oil temperature or low engine oil pressure

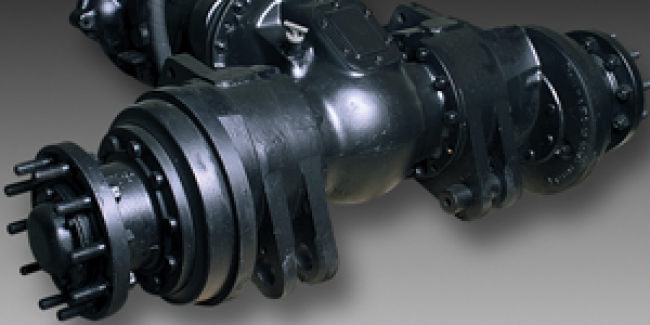

• Transaxle

• No exposed seals or driveshafts to wear or collect debris

• Allows both to be cooled with the transmission cooling system

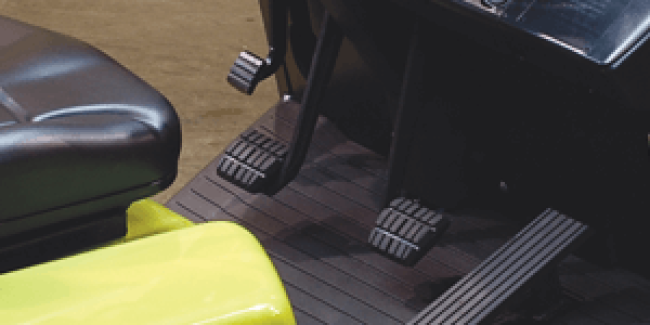

• Inching Valve

• Brake System

• System can be simply diagnosed using automotive style malfunction light and fault codes

• Hydraulic System

• Electronic directional controls minimize fatigue

• Heavy duty, welded & formed steel plate protects from impact damage and extends the life of the truck
