Komatsu AX50 Series IC Pneumatic
|
Quick Look
|
| Dual Floating Structure - The Komatsu Komfort Zone design uses a dual floating structure that protects operators. One set of vibration-dampening mounts separate the forklift’s frame from the engine and transmission. A second set of suspension mounts isolate the operator compartment from the frame. In addition, drive-train design reduces vibration transmitted from the differential. |
| Fully Hydostatic Power Steering - The AX50 Fully Hydrostatic Power Steering system reduces operator fatigue by eliminating kickback and allowing easy steering, even while the forklift is stationary. A small-diameter steering wheel improves operator feel and control. |
| High Efficiency Drive Train - A new transmission, designed and manufactured by Komatsu Forklift Limited, handles the high torque provided by the powerful K21 engine. A high-capacity oil cooler protects the torque converter, and an aluminum alloy transmission case improves heat dissipation. O-ring face seals designed for high-temperature, high-speed applications reduces the possibility of leaks in the pump, power steering circuit and torque converter cooler. |
| Angled Exhaust Ports - Hot engine air and exhaust gases are tiring to the operator. On the AX50, angled ports aim hot engine air away from the operator while traveling in reverse. Exhaust vents located low on the counterweight keep exhaust gases away from the operator and also away from the floor to avoid stirring up dust. |
|
Komatsu BX50 Series IC Pneumatic
|
Quick Look
|
| Angled Exhaust Ports - Hot engine air and exhaust gases are tiring to the operator. On the BX50, angled ports aim hot engine air away from the operator while traveling in reverse. Exhaust vents located low on the counterweight keep exhaust gases away from the operator and also away from the floor to avoid stirring up dust. |
| EZ View Mast System - With the excellent visibility window on the EZview mast, the BX50 operator has an unrestricted view of the fork tips and surroundings. Towards the front, the newly designed EZview mast, console and low-profile dash give maximum visibility. To the rear, the upper corners of the counterweight are angled for clear sightlines in reverse. |
| Dual Floating Structure - The Komatsu Komfort Zone is a dual floating structure that protects operators through advanced ergonomic design and reduces the effects of engine vibration, noise and heat. Vibration-dampening mounts separate the engine and transmission from the forklift’s frame. Additional suspension mounts isolate the operator compartment from the frame. The heavy-gauge steel frame, front axle and heavy front fender connect to deliver high strength—critical for high lifting and heavy loads. |
| High Efficiency Drive Train - The high torque delivered by the BX50’s powerful K21 and K25 engines is channeled through a new transmission designed and manufactured by Komatsu. This rugged new drive train features an aluminum alloy transmission case for improved heat dissipation, a high-capacity oil cooler or torque converter, and O-ring face seals to greatly reduce the possibility of leaks. Komatsu’s extensive experience with demanding construction machinery applications led to a highly reliable, highly dust-resistant, double-seal universal joint design in the full floating BX50 drive train. |
|
Clark C15/18/20S GEN2
|
Quick Look
|
| Park brake applied |
| Maintenance required |
| Fuel system malfunction |
| Uses load-sensing flow control valve to reduce heat build-up |
|
Clark C40/45/50s/55s
|
Quick Look
|
| Rails are designed to be 55% stiffer than conventional flat-faced rails |
| Hand operated lever actuates brake |
| Molded for support |
| Silent staging reduces shock & vibration |
|
Clark C60/70/75/80
|
Quick Look
|
| Enclosed and Oil Cooled |
| Built for smooth, quiet operation |
| Reduces vibration and noise level to improve operator comfort |
| Simple & Error Proof |
|
Komatsu CX50 Series IC Pneumatic
|
Quick Look
|
| Durable Wet Disc Brakes - The wet disc brake system is sealed with oil to block dust penetration, providing durable, water resistant and fade resistant characteristics. Smooth, stable braking provides productivity and reliability in demanding operations. The oil in a wet disc brake system is circulated through the brake oil cooler. This mechanism ensures stable braking under a heavy work load and prevents deterioration of the braking force that could be caused by raised oil temperatures. Komatsu’s unique cushioning valve enables controlled braking force that precisely reflects the pressure on the brake pedal. |
| Fully Hydrostatic Power Steering - The Fully Hydrostatic Power Steering (FHPS) system facilitates fully stationary steering as well as switchback operations using the small diameter steering wheel. The system has a superior response capability so that the operator can maneuver easily with a load even in a tight area |
| Secure Operator Controls - The secure lever controls with minimum movement using fingertip operator for the F/R lever. The control levers feature contoured knobs for ease of control. A smaller steering wheel permits widened forward visibility along with the redesigned dashboard for complete fork tip visibility. Komatsu’s unique cushioning valve enables control of the braking force in proportion to the pressure on the brake pedal and improves the braking feel. |
| Full Suspension Seat - The full suspension seat provides improved operator comfort. The deluxe seat features improved vibration resistance and reduced stress on the body. This seat features six-step reclining backrest, 6.7” slide distance backward and forward, seat cushion adjustable dial and a retractable seat belt. |
|
Komatsu DX50 Series IC Pneumatic
|
Quick Look
|
| Komatus Unique OLMS Hydraulic System - The OLMS Hydraulic System contributes to lower fuel consumption. As engine speeds change, the engine RPM sensing control pump detects engine revs and then controls the oil feed to reduce the load on the engine. This unique hydraulic system offers optimized balance of traveling and loading work while delivering increased hydraulic efficiencies in the most demanding applications. |
| KOPS Plus Komatsu Operator Presence System - KOPS Plus – standard on the CX50 – locks out lift, lower, tilt and traveling functions when the operator leaves the seat for more than three seconds. They do not resume until the operator returns to the seat and resets the controls. A flashing yellow warning light alerts the operator when the KOPS lock is activated. In addition, the forks cannot be lowered while the key is in the off position. |
| Reliable Hydraulic and Electrical Systems - The main hydraulic pipe connectors are face-sealed using O-rings. Waterproof connectors are provided to the main harnesses and the system controller in order to provide higher resistance to water and dust. Hydraulic and electrical piping systems are in separate configurations to improve the reliability and servicing. |
| Durable Wet Disc Brakes - The wet disc brake system is sealed with oil to block dust penetration, providing durable, water resistant and fade resistant characteristics. Smooth, stable braking provides productivity and reliability in demanding operations. The oil in a wet disc brake system is circulated through the brake oil cooler. This mechanism ensures stable braking under a heavy work load and prevents deterioration of the braking force that could be caused by raised oil temperatures. Komatsu’s unique cushioning valve enables controlled braking force that precisely reflects the pressure on the brake pedal. |
|
Komatsu EX50 Series IC Pneumatic
|
Quick Look
|
| Highly Rigid Frame - A highly rigid frame enhances truck durability and load handling performance. Use of a main frame structure that consists of a single piece of thick plate steel provides high rigidity against twisting caused by static steering, turning, or uneven surfaces resulting in excellent truck durability and load-handling performance. |
| KOPS Plus Komatsu Operator Presence System - KOPS Plus – standard on the EX50 – locks out lift, lower, tilt and traveling functions when the operator leaves the seat for more than three seconds. They do not resume until the operator returns to the seat and resets the controls. A flashing yellow warning light alerts the operator when the KOPS lock is activated. In addition, the forks cannot be lowered while the key is in the off position. |
| Komatsu's Hydraulic Suspension Cab HSC - Komatsu’s HSC mount system raises the operator’s cab from the vehicle chassis with a hydraulic suspension system that absorbs most operational vibration. This greatly helps improve operator comfort to reduce fatigue even during long work shifts. |
| Heavy Duty HPCR System - High pressure compressed fuel is stored in an accumulator chamber called a common rail. The fuel is injected into each cylinder at the proper time by an ECU (electronic controlled unit). This high pressure compression rail system optimizes fuel burn and greatly reduces fuel consumption. |
|

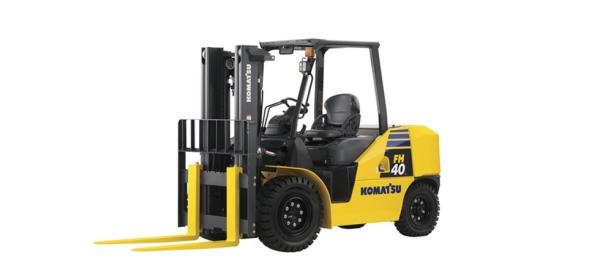

Komatsu FH Series IC Pneumatic
|
Quick Look
|
| Controllability and Operation - The FH series requires less inching pedal use because the HST forklift can adjust speed through the use of the accelerator pedal. Also with excellent controllability of the HST, the operator has better control when maneuvering in tight quarters, lifting, or load handling. Travel speeds can be set in for stages and activated with the turtle switch. To eliminate inadvertent start-ups, the FH engine can only start when the shift lever is set to neutral, brake pedal depressed and the operator is in the seat. |
| Electronically Controlled HST - In the HST system, the diesel powered engine drives the pump and oil supplied from the pump then rotates the motor that drives the forklift. The power losses over the entire engine speed range are minimal. Since the HST system does not have a clutch, there is no possibility of heat loss or slippage. This means power transmission losses are minimized to reduce fuel consumption. |
| KOMTRAX - KOMTRAX, a standard feature on the FH series, is Komatsu’s remote equipment and fleet monitoring system. Leading-edge wireless technology and a secure, user-friendly web-based application provide critical information…anytime, anywhere. KOMTRAX tells you where your machines are, what they are doing, and how they are doing it providing total fleet management capabilities for improved fleet utilization, reduced downtime and lower owning and operating costs. |
| Reduced Roll Back - With HST drive, the oil flow to the hydraulic motor is stopped when the accelerator pedal is released, so even if the forklift is stopped on a ramp and the operator releases the brake pedal, downhill creep is reduced. This also facilitates easier ramp-start. |
|
Clark GTS 20/25/30/33
|
Quick Look
|
| Engine |
| The GTS series is designed to tackle any task placed in its path. Standard wet disc brakes (enclosed and oil cooled) ensure the best possible brake performance. Compared to drum brakes, less pedal effort is needed - a real advantage for long shift applications. Many different configurations are available, in this way GTS series can be individually equipped to be suitable for any application. |
| The CLARK GTS Series (GTS 20-33) impresses with solid construction and high quality components. With wet disc brakes and a split transmission as a standard features, this series is extremely reliable and durable. And most importantly, the total cost of ownership (TCO) is significantly reduced since brake maintenance is minimal. The GTS20-33 series trucks are quality designed for distribution, manufacturing and warehousing of all types. |
| Axle |
|
Clark S20/25/30/35
|
Quick Look
|
| Password Protected Engine Start Through Dash |
| Steering Column Adjustable Tilt Range of 30 degrees |
| Interactive Dash |
| No Regeneration (Burn-off) Cycles Necessary |
|
